Art. No. 12.150.H30 ; 12.350.H30; 16.022.H30; 16.023.H30; 16.024.H30; 16.025.H30; 16.026.H30; 16.027.H30; 16.040.H30 ; 16.041.H30 ; 16.042.H30; 16.043.H30; 16.044.H30; 16.303.H30 ; 16.303.C00; 16.021.H30

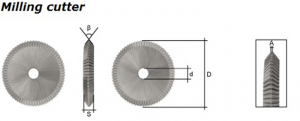

Description

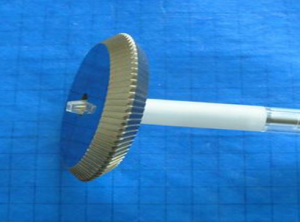

silca cutting machine key cutter
Art. No.
SILCA ref.
Type
Mat.
D [mm]
S [mm]
d. [mm]
A[mm]
β
Teeth
12.150.H30
D410106ZZ
Punta
HSS
20
10
10
0
110°
48
12.350.H30
D401866ZZ
Punta
HSS
25
10
10
0
110°
60
16.022.H30
D702845ZB
2
HSS
60.4
7.6
9.53
1
100°
80
16.023.H30
D702846ZB
3
HSS
60.4
6.9
9.53
1
100°
80
16.024.H30
D702847ZB
4
HSS
60.4
7.2
9.53
1
85°
80
16.025.H30
D702220ZB
A1
HSS
60.4
8.95
9.53
0
110°
80
16.026.H30
D702221ZB
A2
HSS
60.4
8.95
9.53
0.8
90°
80
16.027.H30
D702222ZB
A3
HSS
60.4
9.5
9.53
1.5
90°
80
16.040.H30
D705691ZB
A4
HSS
60.4
8.9
9.53
0.55
110°
80
16.041.H30
D705634ZB
D1
HSS
60.4
7.6
9.53
0.8
100°
80
16.042.H30
D702848ZB
DK1
HSS
60.4
8.55
9.53
0
105°
80
16.043.H30
D702849ZB
DK2
HSS
60.4
8.55
9.53
0.7
105°
80
16.044.H30
D704246ZB
NL1
HSS
60.4
8.25
9.53
0
113°
80
16.303.H30
CW-1012
HSS
60.32
9.53
9.53
0
86°
54
16.303.C00
CW-1012C
Carbide
60.32
9.53
9.53
0
86°
54
16.021.H30
D702844ZB
1
HSS M35
60.4
7.2
9.53
0
100°
80
