BMW EWS-4.3 & 4.4 IC Adaptor for R280 Plus, X-PROG, AK90 & R270 Programmer(No Need Bonding Wire)

EWS 4.3 & 4.4                              9S12(2L86D)                         On board reading Adaptor

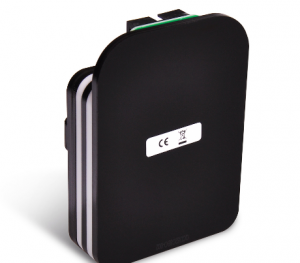

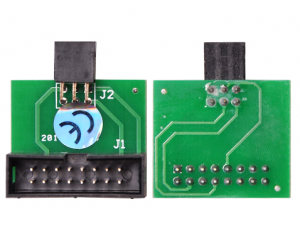

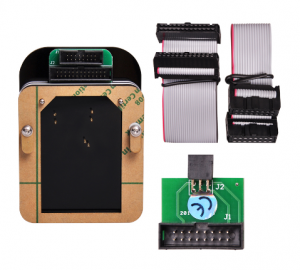

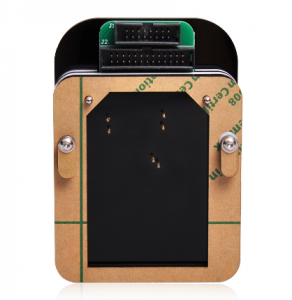

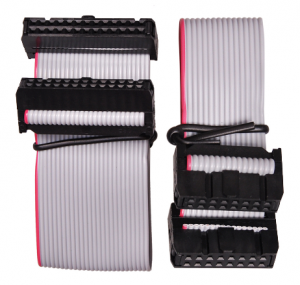

Package including: main hardware, longer cable, short cable, small circuit board

Before reading , please use " sand paper " to scrape glue off the circuit in back of EWS

Working with AK90 programmer:

Must be with the small circuit on reading:

Select "2L86D" under AK90 software

Working with X-PRO programmer:

No need of the small circuit on reading

Select "MC9S12-EEPROM-secured" family under "MCU/MPU" in the software

Working with R270 programmer

must be with the longer cable

Select  " 2L86D "under the selection of software and select reading "EPROM or FLASH" as you wish
