Original Autel MaxiSys MS908S Pro Professional Diagnostic Tool with J2534 ECU Programming Device

Product Description

MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.

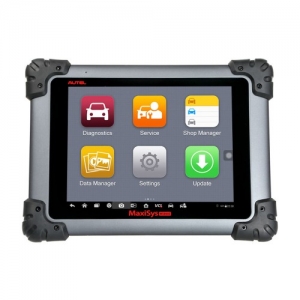

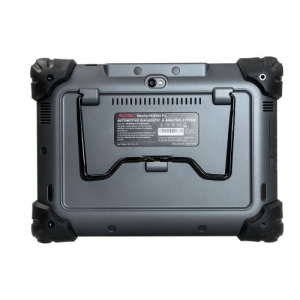

Autel MaxiSys MS908s Pro Diagnostic Platform

Top 14 Reasons to Get Autel MaxiSys MS908s Pro:

1. Extraordinarily powerful Cortex A7+A15 six-core processor

2. 9.7" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology

3. Internal reliable 64GB On-board Memory for better performance

4. Built-in 8-megapixel rear camera with autofocus and flashlight

5. The VCI connects to the main unit wirelessly with up to 70 meters working range

6. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources

7. Unique ergonomic design with rubberized outer protection and a rugged internal housing

8. Open source Android Operating System for fast boot-up and multitasking

9. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

10. Exceptional OE-Level system coverage for all electronic systems

11. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc

12. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

13. Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation

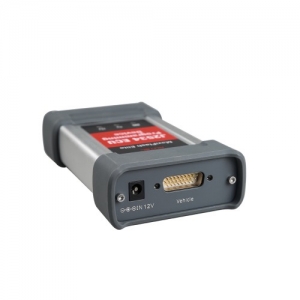

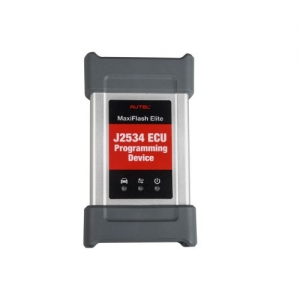

14. Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues

MS908S PRO Descriptionss:

One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.

MS908S Pro Specification:

Operating System		AndroidTM 4.4.2, KitKat
Processor		Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory		2GB RAM & 64GB On-board Memory
Display		9.7 inch LED capacitive touch screen with 1024x768 resolution
Connectivity		Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI
Camera (rear)		8.0 Megapixel, AF with Flashlight
Sensors		Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output		Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery		11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage		12 V (9-24 V)
Power Consumption		6.5 W
Operating Temp.		0 to 50°C (32 to 122°F)
Storage Temp.		-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)		300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight		NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
Protocols		ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

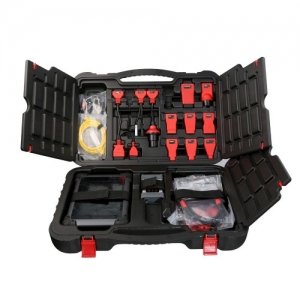

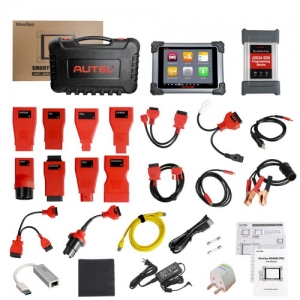

Autel MS908S Pro Accessaries:

USB Ethernet Adapter
Standard 2.0 USB Cable
BMW Ethernet Cable
Main Cable – 1.5 m in length
Adapter for Chrysler-16 (America Only)
Lighter Fuse
Adapter for GM/Daewoo-12
Adapter for PSA-2
Adapter for Fiat-3
Adapter for BMW-20
Adapter for Benz-38
Adapter for Kia-20
Adapter for Mitsubishi/Hyundai-12+16
Adapter for Nissan-14
Adapter for Honda-3
Cigarette Lighter
AC/DC External Power Adapter
Clipper Cable
Adapter for Benz-14 (for EU only)
Adapter for VW/AUDI-2+2
Mini USB Cable
Ethernet Serial Cable
