Latest AUTEL MaxiDAS DS808 KIT Tablet Diagnostic Tool Full Set Support Injector & Key Coding Update Online

Product Description

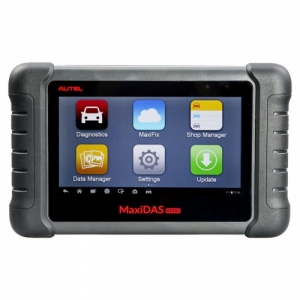

Autel DS808 Based on the Android operating system and with 7-inch LCD touch screen (1024*600 resolution), MaxiDAS DS808 (With Conkit) full set is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 (With Conkit) offers maximum convenience and efficiency for your diagnosis and analysis.

Latest AUTEL MaxiDAS DS808 (With Conkit) full set Handheld Touch Screen Autel Diagnostic Tools Update Online

AUTEL MaxiDAS DS808K US Version has Chrysler 16Pin Adapter, doesn't have Benz 14Pin Adapter
AUTEL MaxiDAS DS808 EU Version has Benz 14Pin Adapter, doesn't have Chrysler 16Pin Adapter.

AUTEL MaxiDAS DS808 full set VS MaxiDAS DS808:

The only difference: This DS808 is full set, and MaxiDAS DS808 SP297 is standard set. Please confirm by checking their packge list.
Same: same functions and same MUX specification

Free Update Online for One Year, after one year, it will cost 349.5usd per year.

Autel DS808 (With Conkit) Features:

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data

Note: There are two options available when accessing the Diagnosis section:

1. Auto Scan – starts auto scanning for all the available systems on the vehicle.

2. Control Units – displays a selection menu of all available control units of the test vehicle.
After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.

Autel DS808 Supported Automotive Protocols:

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel Maxidas DS808 Vehicle List:

1. European vehicle list:
AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

2. USA vehicle vist:
GM, CHRYSLER, FORD

3. Asia vehicle list:
SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.

How to update Autel DS808 (With Conkit) software:

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
2. Tap the Update application button from the MaxiDAS Job Menu;
    or tap the update notification message when received one;
    or tap the Update icon on Vehicle Menu in Diagnostics application.
    The Update application screen displays.

3. Check all available updates:
If you decide to update all the items, tap the Update All button.
If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).

4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume
from the break point.

5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

Autel MaxiDAS DS808 vs. DS708 vs.MS906:

Product Name	Autel DS808	Autel DS708	Autel MS906
Item.No	USHKSP297-B	HKSC39-B	HKSP262
Appearance
Price	$845	$799	$970
CPU	Cortex-A9 processor (1.5 GHz)	Samsung S3C2440 ARM9 Processor 400 MHz	Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
OS	Android™ 4.4.4	Windows CE	Android™ 4.4.2, KitKat
SSD Hard Drive	32GB		32GB
Touch Screen Display	7″ LCD 1024×600 resolution touch scrren	7.0″ 800×480 TFT Resistive Touch Screen	8″ 1,024×768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Connectivity	Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)	Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)	USB 2.0, Ethernet, Wi-fi
WIFI	802.11b/g/n Wi-Fi	2.4 GHz	802.11b/g/n Wi-Fi
Internal Battery	3.7 V/3200 mAh lithium-polymer battery		3.7V/5000 mAh lithium-polymer battery
Weight(Display)	788 g (2.42 lb.)	1.1kg (2.95lb)	0.96 kg (2.12 lb.)
Camera(Rear)			8.0 Megapixel, AF with Flashlight
Wireless VCI	Yes		Yes
Boot Up Time	Less than 40 seconds	40 Seconds	Less than 40 seconds
Complete OEM-Specific Scanner Coverage	Yes	Yes	Yes
AutoVIN Technology	Yes		Yes
MaxiFix Cloud-Based Information System	Yes		Yes
Shop Manager	Yes		Yes
ECU Coding	Minimum	Minimum	Minimum
ECU Flash Programming	N/A	N/A	N/A
J2534 Hardware Included	N/A	N/A	N/A
Default Language	English, pay to change other language	English	English, Spanish, French, German, Portuguese and Russian
Subscription-Based On-Line Updates	Yes	Yes	Yes
Warranty	Yes	1 year	1 year

MaxiDAS DS808 (With Conkit) Specifications:

Operating System:                                Android™ 4.4.4
Processor:                                             Cortex-A9 processor (1.5 GHz)
Memory :                             32GB
Display:                           7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity:                         Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors:                                                 Ambient light sensor for brightness auto changing
Audio Input/Output:• Input:                   N/A • Output: buzzer
Power and Battery:                               3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life:                              Around 4.5 hours of continuous use
Battery Charging Input:                       5 V/1.5 A
Power Consumption:                          500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp:                                  -10 to 60°C(14 to 140°F)
Storage Temp:                                      -20 to 70°C (-4 to 158°F)
Operating Humidity:                             5% - 95% non-condensing
Dimensions (W x H x D):                     237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight:                                            788 g (2.42 lb.)

Autel Maxidas DS808 Full Set Questions and Answers (FAQ)

Question: Can you use this to program new keys
Answer:   Yes you can reprogram keys with this tester

Question: Is it true that this model is no longer updateable? I was just going to purchase one,but if that is the case it is worthless
Answer: I can only tell you that I updated mine for Mercedes and chevy right after I registered it

Question: can you program the abs module with this
Answer:DS708 can not program the abs module.Only maxisys pro can do it

Question: Is it availalable with standard package which has less adapters and cables?
Answer:Yes, we have standard package Autel Maxidas DS808.

Question: Is it difficult to register this device? And can it support Spanish?
Answer: Registering the device was easy. You simply go to autel’s website and set up an account. Once you do that you take the registration code/passcode from the scan tool and register it on the website. You then make sure that the scan tool is hooked up to your wifi which is setup in settings. Then you are ready to update the scan tool with the latest software.
Changing the language settings is also easy. You simply do that in settings as well and have multiple different choices. I do know Spanish was one of them. I returned mine because it could not code or reset any adaptaions in any modules on my vehicles. My vehicles are about 15 years old and I think the support on older vehicles goes away with the updates. It probably has more capabilities on the newer vehicles. I should have purchased one of these 5 years ago and never updated it so that the scan tool could retain its capabilities.

Question: Can i use for other connections besides OBD2?
Answer: Yes, this is full set version, it is included with many cables and adapter which are not OBD2.

Question: What is the head set used for with the scan tool
Answer:It’s not used with the tool is just a free give away to get you to buy an outdated tool that according to autel there will be no more updates after Dec 2017. I sent it back because I couldn’t get it to update or more like it removed software during update which is another common complaint on their site. I feel it’s dishonest to sell things claiming a year full updates and it’s not a year is much less than a year but I guess China isn’t afraid of a class action for fraud.

Question: Does it do tire pressure and how about the free headset?
Answer:It will perform limited tire pressure functions (i.e. Read it) if the ECU program allows it via OBD II connector. The free head phones are surprisingly very good, they are comfortable, easy to use, battery lasts a long time and rechargeable.

Question: Does this tool have bi-directional control and diagnostics for the Body control Module?
Answer: Yes, of course, it can support it.

Question: can it program tpms sensor
Answer: It can put the car into programing mode but you will need a tpms sensor tool

Question: Can it do a power balance on a ford 2006 f350 diesel?
Answer: Yes, it can be supported.

Question: can i use in Spanish language ?
Answer: may we know what’s your serial No. of your DS708? To change language, you need to download all the software again, so your device needs to be within the updating period. If it is still within updating preriod, please provide us the serial No. and we can ask Autel to authorize Spanish for you.

Question: can this unit be used to relearn the idle, on a 2010 chevy 1500 silverado z71, auto trans, 5.3
Answer: Yes, it can be supported.

Question: Dose it work on 24v truck
Answer: Mine is a 708 and is 12 volt only. You may have to get one for heavy duty trucks, depending on the make. Sorry I couldn’t help.

Autel DS808 Customer Reviews:

Review 1:With the Maxisys I was a little skeptical with it...cause i have a thing with Chinese made products...but after researching and viewing videos on this scanner...I was sold with it's functions. When I received it let me tell you...I am impressed as soon as I opened the box. The first thing I like the weight and size of it. It's light and very comfortable moving around especially that it's bluetooth...wow done with cables! Next I read people reviewing about disappointments on the updating...it was not as long as they say...I'm connected to cable modem and the update took just 1hr 1/2 and in the afternoon. I did it Ethernet instead if Wifi to make it faster. So I believe those people had connectivity issues. Now the best part, the speed of this thing...incredible. Wow the booting up, the ease of touch screen...it feels like navigating through my Samsung S6. I've had this for a week...it it already saved me money. I had a 2016 LandRover RangeRover that needed a rear brake repair...when it came time for the repair, I had no knowledge it had electronic parking brake...so I almost thought I was going to lose that job till I checked to see If the Maxisys had the electronic brake release feature...and shocking it did!! I was so happy! Next job I had was a 2009 Hyundai Sonata 4cyl, complaint was it had a 2-1 rough downshift...found there's a recall that needed to be reprogrammed on these symptoms...guess what...this thing has a Transmission ECU reset feature...and it worked! Unbelievable! I'm very happy with this and also glad I didn't go as far as investing in Snapon or Matco products. It's good enough for me!

Review 2:I think DS708 is the first generation of iconic device for Autel, because of its reasonable price and cost efficient function. I owned one DS708 for many years, but regret that it will not be updated any more. So I intended to add its new extended version- DS808 for my small repair shop, which can fully meet my requirements. Its new CPU and LCD touch screen, dramatically improved the entire users’ experience, much more smooth comparing with DS708. Personally, I would recommend this tool for those small shops with limit budgets. Of course, if money is not a problem, Maxisys Elite may be your good choice.

Review 3:Actually I’m self-maintainer not a shop guy, I already have Diaglink but need more professional device, which can help me do some features as adaptation or Matching & lots of things. I do like 908P but expensive, so I’m buying DS808, affordable price and good performance.

Review 4:Compatible to my cars,it seems it is compatible to many US, European’Asian vehicles ,user friendly and has software for different vehicle models and systems. Very handy and has different adapters for the car models, I will use the equipment to scan and diagnose.
Would recommend this product. Worth the money! And Motorzone send me a free headset.Sounds good.

Autel DS808 Package Includes:

1pc x USB External
1pc x Power Adapter
1pc x USB External Power AdapterUser

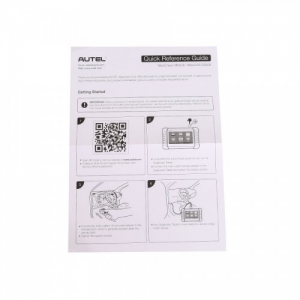

1pc x ManualQuick reference guide
1pc x Mini USB Cable
1pc x User Manual
1pc x Quick Guide
1pc x Benz-14
1pc x Chrysler-16
1pc x BMW-20
1pc x Kia-20
1pc x Nissan-14
1pc x GM/Daewoo-12
1pc x Honda-3
1pc x VW/AUDI-2+2
1pc x Mitsubishi/Hyundai-12+16
1pc x Benz-38
1pc x PSA-2
1pc x Fiat-3
