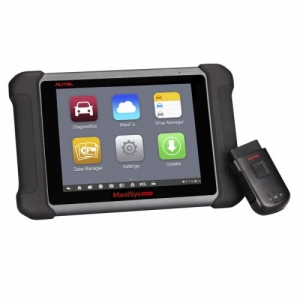

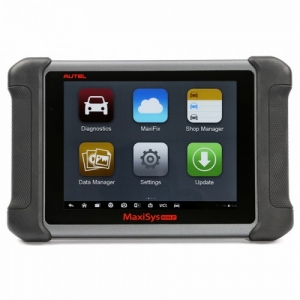

AUTEL MaxiSys MS906BT Advanced Wireless Diagnostic Devices for Android Operating System One Years Free Update

Product Description

MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.

AUTEL MaxiSys MS906BT Advanced Wireless Diagnostic Devices for Android Operating System

Language: English and Spanish

MaxiSys MS906BT Features:

*Extraordinarily powerful Samsung Exynos Hexa-core processor
*8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
*Internal reliable 32GB SSD for better performance
*Built-in 8-megapixel rear camera with autofocus and flashlight
*802.11b/g/n Wi-Fi to access your favorite web resources
*Unique ergonomic design with rubberized outer protection and a rugged internal housing
*Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
*USB, audio and auxiliary ports make it easy to connect accessories
*Open source Android Operating System for fast boot-up and multitasking
*Easy and intuitive navigation makes finding what you need simple and fast
*The most extensive complete system coverage for more than 80 US, Asian and European makes and models
*Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
*Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
*Smart AutoVIN technology for identifying vehicle easily
*Automatic system and software updates with real-time push message notifications via internet
*Instant remote control tech support anytime, anywhere
*Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
*Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
*One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
*Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
*Convenient data management system for managing internal program applications and reviewing data

MaxiSys MS906BT Specifications:

Operating System	Android™ 4.4.2, KitKat
Processor	Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory	2 GB RAM & 32 GB ROM
Display	8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity	Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)
Camera (rear)	Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-35 V)
Power Consumption	5 W
Operating Temperature	-10 to 55°C (14 to 131°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight	NW: 1.05 kg (2.3lb.)

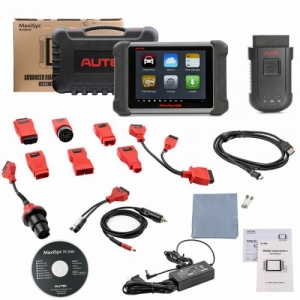

MaxiSys MS906BT Package including:

User Manual
Carrying Case
Adaptor for Chrysler-16 (for NA only)
Light Fuse
MaxiVCI V100
Quick reference guide
Adaptor for GM/Daewoo-12
Adaptor for PSA-2
Adaptor for Fiat-3
Adaptor for BMW-20
Adaptor for Benz-38
Adaptor for Kia-20
Adaptor for Mitsubishi/Hyundai-12+16
Adaptor for Nissan-14
Adaptor for Honda-3
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Adaptor for Benz-14 (for EU only)
Adaptor for VW/AUDI-2+2
Soft Cloth
Packing List
Mini USB Cable
