OBDSTAR P001 Programmer RFID & Renew Key & EEPROM Functions 3 in 1 Get Free Toyota Simulated Smart Key

Product Description

On the basis of original adapter features, P001 programmer, integrated with the EEPROM adapter, RFID adapter and Key Renew adapter, is a multifunctional programmer.
It brings a brand new experience, which not only allows auto technician to reduce more cumbersome procedures, but also can be compatible with simulated smart keys to realize the Toyota all lost.

2018 OBDSTAR P001 Programmer RFID & Renew Key & EEPROM Functions 3 in 1 Get Free Toyota Simulated Smart Key Work with OBDSTAR X300 DP Master

On the basis of original adapter features, P001 programmer, integrated with the EEPROM adapter, RFID adapter and Key Renew adapter, is a multifunctional programmer.
It brings a brand new experience, which not only allows auto technician to reduce more cumbersome procedures, but also can be compatible with simulated smart keys to realize the Toyota all lost.

P001 Programmer Support Vehicle List:

IMMO for VW AUDI SKODA SEAT 4 & 5 GEN (Same function as the RFID Adapter)
The 4th and 5th generation for the programming of VW/AUDI/SKODA/SEAT are added as follows:
1. CDC+24C32 Types
2. NEC+24C32 Types
3. 2013 Johnson Types;
4. Motorola 9S12XHZ512 Types;
5. NEC+24C64 Color Screen- Type 1
6. NEC+24C64 Color Screen- Type 2
7. NEC+24C64 White Screen Type
8. NEC+24C64(VDO -12)Type
9. NEC+95320 Type
10. NEC+35XX Type
11. Magotan/ CC Type
12. Q7/A6L(C6)9S12DT(G)128 Type
13. Q7/A6L(C6)9S12DT(G)256 Type
14. Lifan Marvell models are added, which includes Add/Clear Keys, Program/Delete ESCL functions.
15. Jiangling MU-X models are added as key programming and key clearing.

Renew Used Key to be Blank One for Programming New Key. ( Same Function as the PCF79XX Renew Key adapter)

Audi
5th generation immo

Board 233.453.111-02
315MHZ 8T0959754A
315MHZ 8T0959754C
315MHZ 8T0959754J

Board 233.453.111-05/06
315MHZ 4G0959754G
315MHZ 4G0959754J
315MHZ 4H0959754G
315MHZ 4H0959754J
315MHZ 8T0959754A
315MHZ 8T0959754C
315MHZ 8T0959754G
315MHZ 8T0959754J
433MHZ 8T0959754
868MHZ 4G0959754K
868MHZ 4H0959754K
868MHZ 8T0959754D

Board 233.453.211-01/02
315MHZ 4G0959754J
315MHZ 8H0959754DB
315MHZ 8K0959754
315MHZ 8K0959754C
315MHZ 8K0959754G

BMW
E chassis
ono-original key_OEM_KEY
original key_315MHZ
original key_868MHZ

F chassis
315MHZ
IN-Circuit-5WK49663
IN-Circuit-HUF5662
434MHZ
IN-Circuit-5WK49662
IN-Circuit-HUF5663
IN-Circuit-HUF5767
868MHZ
IN-Circuit-5WK49661
IN-Circuit-HUF5661

Porshe
315MHZ
7PP959753BM
7PP959753BQ
433MHZ
7PP959753BN
7PP959753BS
7PP959753AJ
Peugeot
21676652
E25CI009
E28CI01B
E33CI002

VW
Touareg
433MHZ 7P6959754AO
868MHZ 7P6959754L
868MHZ 7P6959754AT

Volvo
smart card
900MHZ
5WK49266

Chrysler
1YZ-C01C-ChipMarking
567_738_031
Keylessgo 567_373_061
IN-Circuit-0HT692427AA
IN-Circuit-0HT692713AA
IN-Circuit-K0B0T04A
IN-Circuit-M3N5WY72XX
IN-Circuit-M3N5WY783X

Renault
double button 433MHZ ChipMarking 2244706
remote control 433MHZ ChipMarking F7945MC2200
smart card 433MHZ ChipMarking F7953MC2200
smart card 433MHZ ChipMarking 049621C03

Landrover
315MHZ YWX000061
315MHZ YWX000071
smart key 434MHZ 5E0U40247

Opel
double button 433MHZ 13500235
triple button 433MHZ 13500234
Corsa double button 433MHZ 13188281
Corsa triple button 433MHZ 13188284
Astra/Zafira double button 433MHZ 13149645
Astra/Zafira double button 433MHZ 13149658

Kia
Keylessgo_ChipMarking 049620C03
7952CMFCH02
CMFEU03
HMFEU04
HMFKR04
HMFNA04

Mitsubishi
434MHZ G8D_644M_KEY_434MHZ_F7952A

GM
Buick smart key 315MHZ
Keylessgo_13500224_13584825_5keys
Keylessgo_13500225_13584825_4keys

Cadillac smart key 315MHZ
Keylessgo_NBG009768T

GM samrt key
433MHZ Keylessgo_3keys
433MHZ Keylessgo_4keys
433MHZ Keylessgo_5keys

Chevrolet
double button 433MHZ 13500218
four button 315MHZ 13500222
five button 315MHZ 13500221
smart card 315MHZ
Keylessgo_13500318_13584828_4keys
Keylessgo_13500319_13584829_5keys

Hyundai
Keylessgo_ChipMarking 049620C03
7952CMFCH02
CMFEU03
HMFEU04
HMFKR04
HMFNA04

Citroen
21676652
E25CI009
E28CI01B
E33CI002

EEPROM Function Supported Models List (Same as the EEPROM Adapter)

Add 24C01/02/04/08/16/32 chip read/write/save/recovery data function;
Add 93C46/56/66/76/86 chip read/write/save/recovery data function;
Add 25010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
Add 95010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
Add Audi security code read function;
Add Baic E150, E130 security code read function;
Add Buick security code read function;
Add Cadillac SLS, SRX security code read function;
Add Changan CM8, Yue xiang, Zhi xiang,benben security code read function;
Add Changhe security code read function;
Add Chery STEC immobiliser and DIAS immobiliser security code read function;
Add Chevrolet Cruze, Trax security code read function;
Add Chrysler security code read function;
Add Citroen Elysee security code read function;
Add Dflz and security code read function;
Add Dfpv S3 security password read function;
Add Geely Emgrand security code read function;
Add Great Wall security code read function;
Add Hafei security code read function;
Add Hnmazda security code read function;
Add Hawtai security code read function;
Add Huapu security code read function;
Add MG3 security code read function;
Add Jiangling security code read function;
Add Liebao security code read function;
Add Skoda security code read function;
Add VW security code read function;
Add Zznissan security code read function;
Add Zotye to security code read function;
Note: Need to remove the EEPROM chip read password

P001 Programmer uses dual coils with stronger signal, supporting a wider range of RFID. It is also required in recent model upgrades, as follow:

Ferrari 458/F12/F149;
Maserati mechanical key;
Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo, etc.
Iveco;
Alfa Romeo;
Volkswagen MQB;
Toyota simulated cards;
BMW;
Porsche

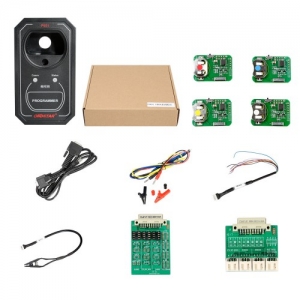

P001 Programmer (Full Package):
P001 Programmer Unit + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable + Toyota simulated smart keys (free);
Remark: Customer purchasing P001 programmer can obtain a set of Toyota simulated smart keys for free.

P001 Programmer Accessories:

Accessory 1: C001 circuit board
C001 circuit board is compatible with old NO. 3 and 4 circuit boards, applying to EEPROM chip dismantling and reading, Tianjin FAW and VIZHI immobilizer coil initialization and other functions.
OBDSTAR P001 Programmer

Accessory 2: C002 circuit board
The newly developed C002 circuit board is connected by W001, W002 or W003 without welding the chip.
OBDSTAR P001 Programmer

Accessory 3: W001 data cable
W001 data cable can read or write data by linking the chip with a bonding wire
OBDSTAR P001 Programmer

Accessory 4: W002 data cable
W002 data cable can read or write data by clamping the chip (SOP 8-pin) directly without welding EEPROM.
OBDSTAR P001 Programmer

Accessory 5: W003 data cable
W003 data cable can read or write data by clamping positive pole and negative pole with red and black clips and contacting the data interface with yellow and blue probes.

Wiring Instruction:

To better understand the connection among P001 programmer and its accessories, examples for W001 and W003 wiring instructions are as below. (During the actual operation process, there is a diagram of wiring inside tablet)

Way 1. W001 Connecting
OBDSTAR P001 Programmer

Way 2. W003 Connecting
OBDSTAR P001 Programmer

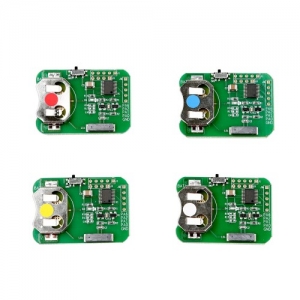

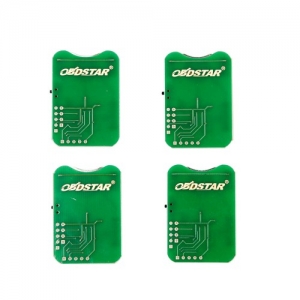

About Toyota Simulated Smart Key

1. Why use a Toyota simulated smart key?
For the Toyota/Lexus 2007-2016 models, if all smart keys are lost, the instrument table must be removed and the ECU must be replaced. The cost is very high!
This Toyota simulated smart key can generate a Toyota key with P001 programmer in the case of all keys lost, so the ignition switch can be turned on, and then a new smart key can be added and programmed with P001 Programmer.

2. What are the advantages of the Toyota simulated smart key?
Save costs
Reusable.

3. How many types of Toyota simulated smart keys in total?
There are 4 types at present, and the 5th one is in development.

4. Which type of smart keys can be simulated?
Simulated key 1 applies to the vehicle with 94/D4 type of smart key;
Simulated key 2 applies to the vehicle with 98 type of smart key;
Simulated key 3 applies to the vehicle with 88/A8 type of smart key;
Simulated key 4 applies to the vehicle with A9 type of smart key;
OBDSTAR P001 Programmer
