Transponder Key and Remote Fit For Auto
Printer Friendly Tell a Friend

X300 DP Plus X300 PAD2 C Package Full Version Support ECU Programming and Toyota Smart Key Get Free FCA 12+8 Adapter

X300 DP Plus X300 PAD2 C Package Full Version Support ECU Programming and Toyota Smart Key Get Free FCA 12+8 Adapter
18070215305820428673.jpg 18070215305820396322.jpg 18070215305820393337.jpg 18070215305820404417.jpg 18070215305820499613.jpg 18070215305820441647.jpg 18070215305820506345.jpg
Click Here for Larger Image
CodeSP326

Product Description

  1. OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version:
  2. Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)
OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version

Promotion:
Buy OBDSTAR X300 DP Plus Get Free OBDSTAR FCA 12+8 UNIVERSAL ADAPTER

Dealer Code: 860755B1
Language: English
Update: One Year Free Update Online, Update Cost is 285USD/year after first year.

OBDSTAR X300 DP Plus Description:

OBDSTAR X300 DP Plus is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Functions:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

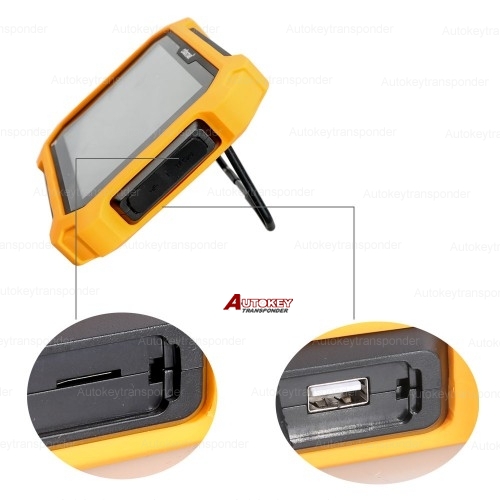

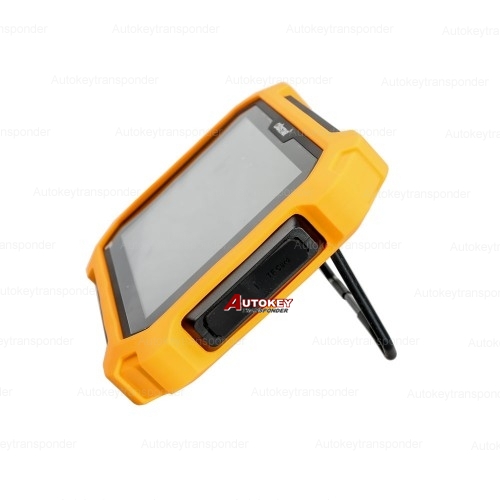

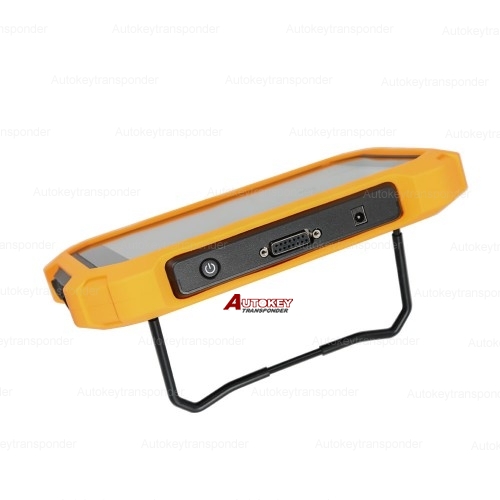

OBDSTAR X300 DP Plus Hardware Features:

1. The built-in VCI box offers more stable communication.
2. The 8" touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve
6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.

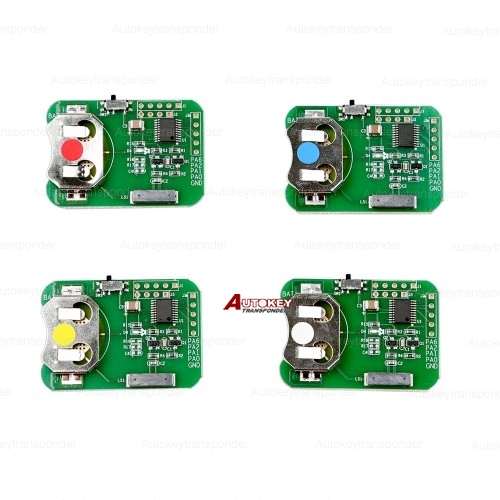

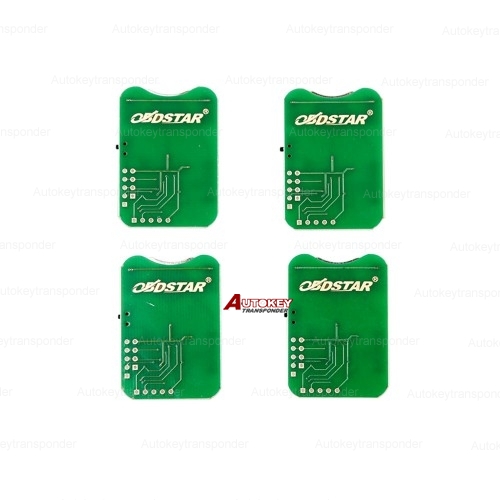

7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.
10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

OBDSTAR X300 DP Plus Software Features:

1. Clone ECU
Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won't need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
ECU clone Pros :
No need to go to 4S shop, convenient, fast and save money.
Simplify the operating steps, even the amateur can also operate.
No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

2. Switch activation function
Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

3. Adds the "Help" function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.
Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

4. Maintenance database: equipped with powerful database.
5. Video center: large amount of videos help users to operate device easily.
6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
7. System setting: set VCI formation, language, unit, data logging, user information etc.
8. Remote assistance: achieve remote assistance by this function.
9. Report center: record maintenance data logging and create reports during operation.
10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection

OBDSTAR Update Information:
OBDSTAR X300 DP Plus Update July 16th, 2019
Opel [V30.33] IMMO Upgrade
Increased VAUXHALL MORANO 2014- smart key system
Increased Astra-G Y17DT/Y17DIT read Pincode from ECM
Increased Corsa-C Z10XEP/Z13DTJ read Pincdoe from ECM
Increased Corsa-D Z10XEP/Z16EP/Z20LER read Pincode from ECM
Increased Astra-H Z12XEP/Z14XEP/Z14XEL/Z16XEP/Z17DTH/Z17DTL Read Pincode from ECM

OBDSTAR X300 DP Plus Update July 10th, 2019
Iveco [V30.00] Upgrade
Increased 2007- Cluster Calibration
Increased 2011- Cluster Calibration
Increased 2014- Cluster Calibration

Renault [V30.81] Cluster Calibration Upgrade
Increased Twingo III
Increased Captur (2017- Block ABS/2017- Unlock DASH/2013- Block ABS/2013- Unlock DASH)
Increased Clio IV (2017- Block ABS/2017- Unlock DASH/2013- Block ABS/2013- Unlock DASH)
Increased Trafic IV (2017- Block ABS/2017- Unlock DASH/2013- Block ABS/2013- Unlock DASH)

Mitsubishi [V30.77] Cluster Calibration Upgrade
ASX 70F35XX
ASX MB91F224+93C86
L200 2017- (MONO)
OUTLANDER III 70F3425 COLOR
OUTLANDER III 70F3425 MONO
OUTLANDER MB91F223+93C86
OUTLANDER SPORT 70F35XX

Nissan [V31.73] Update
Increased Kicks Smart key system

OBDSTAR X300 DP Plus Update July 6th, 2019
***Need to work together with FCA 12+8 UNIVERSAL ADAPTER
Dodge [V30.44] Update
Increased Charger 2019 Cluster Calibration

Jeep [V30.44] Upgrade
Increased Cherokee 2019 Cluster Calibration

Maserati [V32.22] IMMO Update
Ghibli 2018- Pincode reading and smart key programming

OBDSTAR X300 DP Plus Update June 3rd, 2019
Chrysler [V31.04] IMMO Upgrade
2017- Renegade smart key system
2017-2018 Compass smart key system
2018-2019 Grand Cherokee smart key system

Mazda [V30.56] IMMO Upgrade
Increased 2017- CX9 smart key programming

OBDSTAR X300 DP Plus Update May 28th, 2019
ISUZU [V30.21] Upgrade
Increased MU-X proximity system
Increased D-MAX proximity system
Increased MU-7 IMMO system 48 chip
Increased D-MAX IMMO system 48 chip
Increased RODEO IMMO system 48 chip

OBDSTAR X300 DP Plus Update May 22th, 2019
Land Rover [V30.88] Upgrade
Increased Range Rover Sport 2017-(full LCD) cluster calibration

Toyota [V30.13] Upgrade
Increased Camry 2018 cluster calibration

OBDSTAR X300 DP Plus Update May 20th, 2019
JAGUAR [V30.87]
Increased XF(24C64) Cluster Calibration
Increased XK(24C64) Cluster Calibration
Increased XKR(24C64) Cluster Calibration

OPEL [V30.31] IMMO Upgrade
Increased VAUXHALL VIVARO 2002-
Increased VAUXHALL VIVARO 2008-
Increased VAUXHALL VIVARO 2014-
Increased COMBO D 2012-2017(DELPHI 93C86 ID46)

OBDSTAR X300 DP Plus Update May 9th, 2019
# FORD [V32.34] Upgrade All No Need Pincode #
Increased B-MAX key programming
Increased FLEX 2011- key programming
Increased FIESTA 2013- Type 1 key programming
Increased COURIER(TOURNEO COURIER) key programming


OBDSTAR X300 DP Plus vs OBDSTAR X300 DP PAD:

OBDSTAR X300 DP Plus have back holder,it can work separately without VCI and Charged by OBD2.

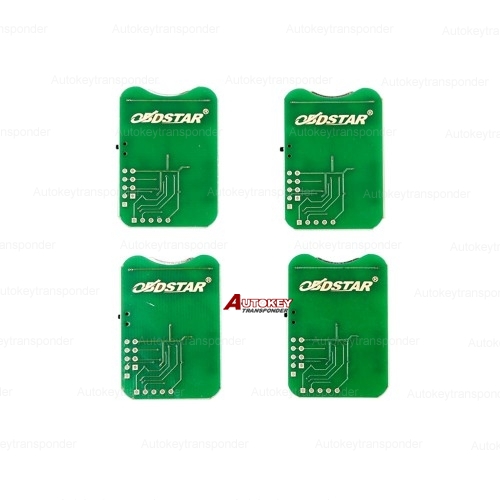

4 Toyota emulators

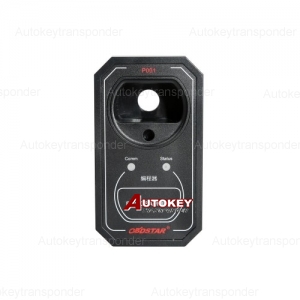

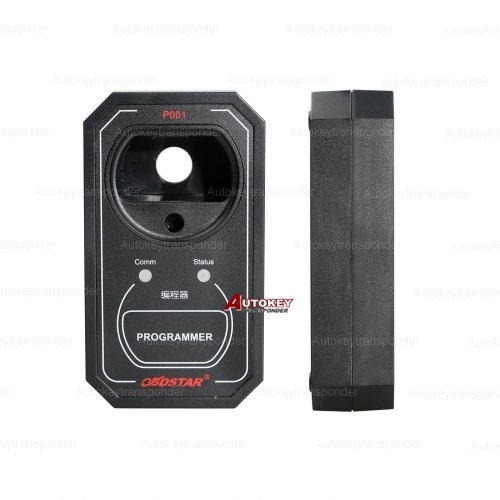

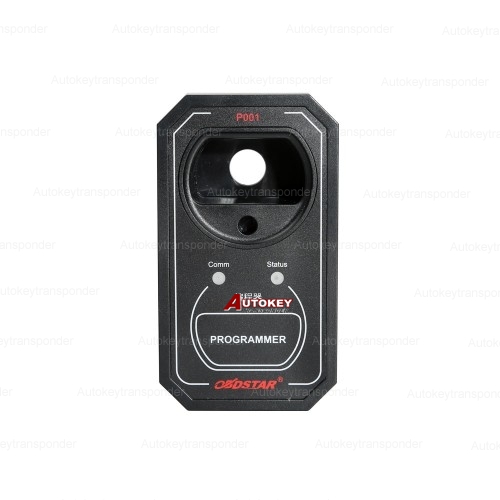

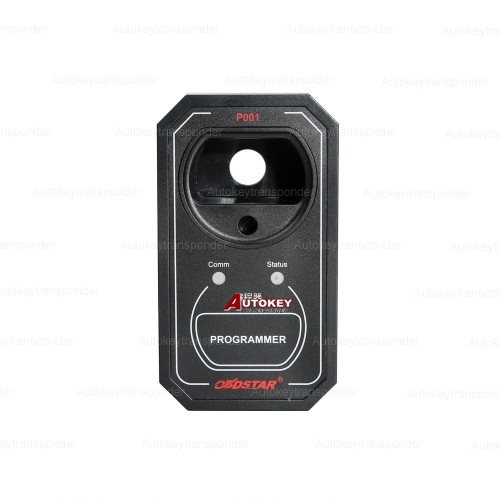

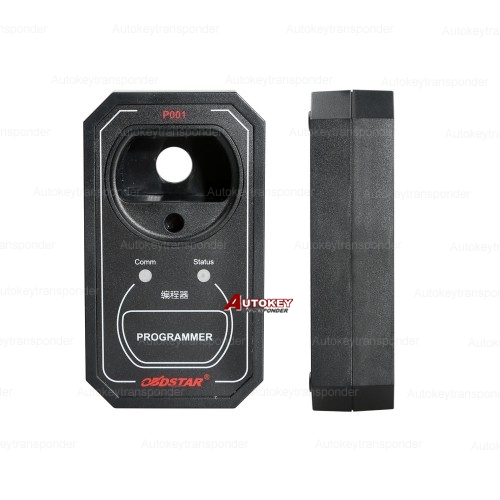

P001 programmer
Wiring harness for new functions,such as ECU cloning and switch activation
ECU clone switch activation function
Help function-covers built in support car list,upgrade announcement,help notes and wiring diagrams
No need pay for software update ofr free during the valid time (one year)

OBDSTAR X300 DP Plus Software Update Instruction:

Tap "One Key Upgrade"  to enter one key upgrade page, as following picture shown:

obdstar x300 dp pad2 plus update-1

Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:

obdstar x300 dp pad2 plus update 2

Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package: X300 DP plus
Remark
　　　A packageB packageC package　
Immobilizer / Remote programmingEuropean carsVW/Audi/Skoda/Seat (Standard)√√√　
VW/Audi/Skoda/Seat (Advanced)√√√add NEC 24C64 2014-key programming.
BMW (Standard)　　　　
BMW (Advanced)√√√Add FEM/BDC key programming, ISN code reading etc.
Volvo√√√　
The other European cars√√√　
Asian carsHyundai /Kia (Standard)　　　　
Hyundai /Kia (Advanced)√√√Add 47/8A/46 smart key pin code reading
Toyota /Lexus (Standard)　　　　
Toyota /Lexus (Advanced)√√√For Middle east cars, it adds H chip all keys lost (Immo box reset)
The Asian cars√√√　
North American carsFord(Standard)　　　　
Ford (Advanced)√√√Add Ford after 2015 key programming functions, I.E: Mobdeo,Edge,Taurus,Escort,EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln MKZ, MKC and Continental 2015 - etc.
GM(Standard)　　　　
GM(Advanced)√√√　
The other American & Chinese cars√√√Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze etc.
Cluster Calibration　All cars cluster calibration　√√　
　　4-system diagnosis　　　Engine, Transmission, ABS, airbag reset
OBDII Diagnosis　Full functions diagnosis　　√Full-system all-cars diagnosis
Special function　Oil service reset　　√Reset the Oil Service Light on
　Manual remote setting　　　Some cars only supports manual remote setting.
　ABS bleeding　　√After replace the ABS pump and related components.
　Battery matching　　√After the battery is changed, you need to match the battery.
　ECU programming　　√　
　The car with EPB replace brake pads　　√Electronic Parking Brake release
　Throttle programming　　√Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed.
　Airbag reset　　√Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused
　TPMS reset　　√Used for reset after tire pressure alarm
　Steering angle reset　　√Replacement of data lost after steering angle change or power off
　OBDII Engine　　√Used to diagnose the car with OBD protocol.
　DPF Regeneration　　√Diesel Particulate Filter Operational
　Injector coding　　√Used to match and code the injector after replacement
　Suspension match　　√Used to match and set the suspension after adjusting.
　Gear learning　　√Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this function)
　CVT learning　　√Used to reset the learning value after maintenance of CVT transmission
　EEPROM　　√Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft
　Key Renew　　√Renew the used keys to solve the problem that used keys cannot be matched to other models
　Steering angle repair　　√Used for the repair of lost data of vehicle steering angle sensor
　ECU Clone　　√Used for copying the program when replacing the new/second-hand computer.
　Switch activation　　√　
Hardware　P001 Programmer unit√√√　
　C001 circuit board√√√　
　C002 circuit board√√√　
　W001 data cable√√√　
　W002 data cable√√√　
　W003 data cable√√√　
　Toyota smart key emulators√√√　
　Remote Tester√√√　
　Anti-theft Induction coil√√√Used to test if the coil can send out the transmit signal.

Read post:  Why OBDSTAR X300 DP Plus is a good investment even expensive

OBDSTAR X300 DP Plus Programming Key Megane 4 Model 2016



OBDSTAR X300 DP Plus Customer Feedback:

Ford Escort 2018 key programming
Ford transit 2017 key programming
Ford Transit 2011 program key
Ford Ecosport Kinetic 2014 all key lost
Chevrolt Cruze 2018 program key
Toyota smart key/key programming
ECU clone and ECU programming via OBDII
Toyota G and H chip all key lost via OBDII within 5 mins
Toyota Corolla 2016 program key
2014 Toyota Corrolla H chip program keys and remote
2015 Honda Civic 2015 program keys and remote
Renault megane IV/Espace/Duster 2016 key programming
Renault Sandreo 2016 key programming
Renault Sandero Stepway 2019 key programming
Renault Duster 2017 program key and remote
GM pin code reading+key programming 2017-2018
Chevrolet Cruze 2018 key programmign
Grand Cherokee 2014-2017 pin code reading
Chrysler pacifica 2018/2019 key programming
Jeep Compass 2018 key programming
Hyundai & Kia Pin new code reading (46/47/8A chip smart key)
Volvo pin code free & all key lost (non-prox)
Nissan pin code calculator & key programming
Land Rover Discovery IV 2012 all key lost
BMW FEM/BDC key programming
VW/Audi MQB key programming
2008 Peugeot Bipper
2006 Ford Connet (4D60 chip)
2018 Ford Cuorier
2011 Partnet Tepe
2017 Symbol
2015 Linea
2007 Caddy
2010 Fiorino
2010/2014 Ford Connect
2012 Renault Megane 3
2016/2017 Fiorino
2010 Rang Rover 3
2016 KIA Cerato
2010 Punto
2017 Duster
2015 Clio 4
2006 Jetta
2019 Fiat Panda
2011 Tourneo Connect
2010 Albea
2015 Smart Mazda 3
2004 Corsa C
2016 Ford Espace V with Renault conveter
2011 Megane III
2016 Ford Transit
2007 Toyota Camary smart key (94/4d) all key lost
2016 Canadian Chevy Cruze
2000 Opel Astra G
2019 Sandero All Key Lost
2017 Polo
2018 model Peugeot 2008 keyless
2016 Qashqai keyless
2016 Doble
2011 Koleos
2017 Hyundai i20
2013 Captiva
2015 Fluence
2015 Qashqai
2015 Fluence
2015 Opel insignia
2016 Transit Custom
2012 Fluence
2017 Pajero Sport


OBDSTAR X300 DP Plus Technical Parameter:

 ● Operation system:                                   Android 5.1.1
 ● CPU:                                                         Exynos4418  Dual Core ARM Cortex A9 1.4GHz
 ● Battery:                                                    3700mA, rechargeable polymer lithium battery
 ● Extension memory card:                          32G Micro SD (TF) card supported
 ● Memory capacity:                                    1GB
 ● Storage capacity:                                     32GB
 ● LCD:                                                          8.0 inch
 ● LCD resolution:                                        1280*800
 ● Touch screen:                                           Capacitive touch screen
 ●  Camera:                                                   5 mega rear view camera
 ● Wi-Fi:                                                        Supported
 ● Working temperature:                             -10℃  ~  55℃（14℉  ~  131℉ ）
 ● Storage temperature:                              -20℃  ~  70℃（-4℉  ~ 158℉ ）
 ● Weight:                                                     about 1.0 Kg
 ● Dimension:                                               254mm*174*mm*35mm

OBDSTAR X300 DP Plus X300 PAD2 Package List:

 Key Master DP Plus Unit
 Main Wire
 12V2A DC Charger
 KIA-20
 OBD II-16 Connector
 HONDA-3
 HYUNDAI/KIA-10
 IMMO Induction Coil
 Muti-functional Jumper
 P001 Programmer Unit
 C001/C002 Circuit Board
 W001
 W002
 W003
 RT100
 TOYOTA Simulation Smart Keys
 Configuration List/Certificate/Quick Start Guide Fold
