Autel MaxiSys MS908s Pro Diagnostic Platform
Top 14 Reasons to Get Autel MaxiSys MS908s Pro:
1. Extraordinarily powerful Cortex A7+A15 six-core processor

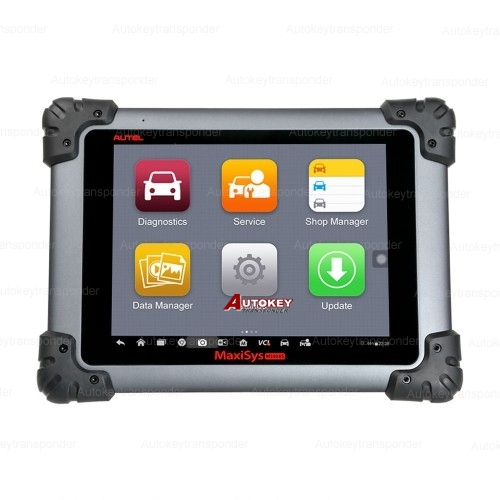

2. 9.7" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
3. Internal reliable 64GB On-board Memory for better performance
4. Built-in 8-megapixel rear camera with autofocus and flashlight
5. The VCI connects to the main unit wirelessly with up to 70 meters working range
6. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources

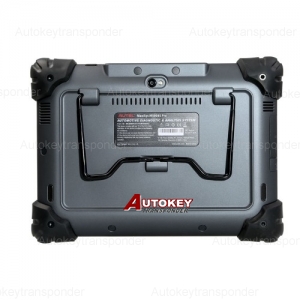

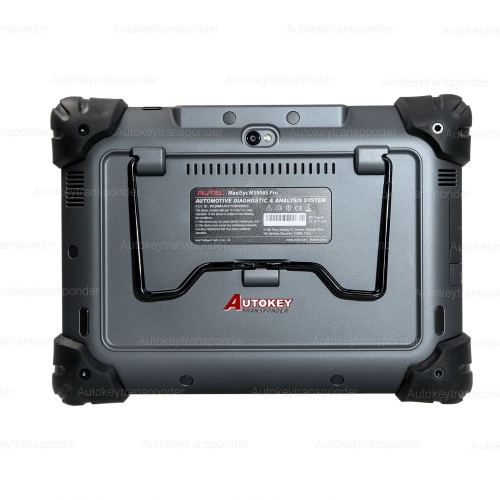

7. Unique ergonomic design with rubberized outer protection and a rugged internal housing
8. Open source Android Operating System for fast boot-up and multitasking
9. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
10. Exceptional OE-Level system coverage for all electronic systems
11. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
12. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
13. Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation

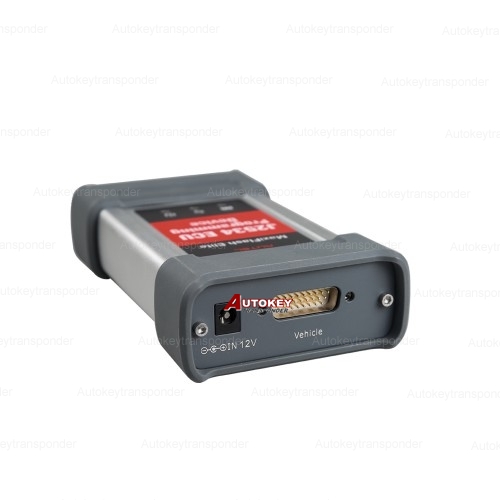

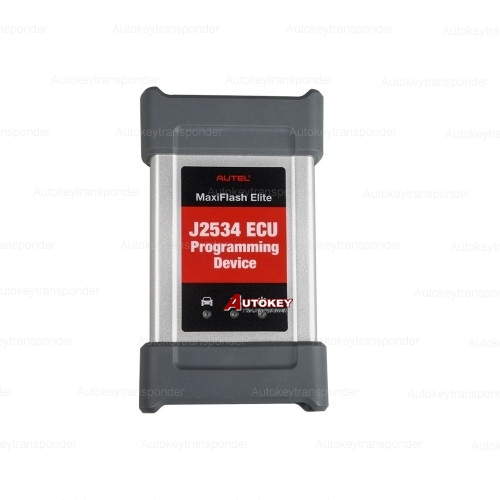

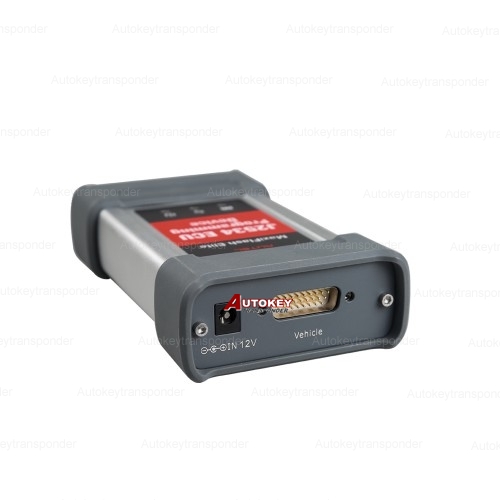

14. Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues
MS908S PRO Descriptionss:
One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.
MS908S Pro Specification:
Operating System | AndroidTM 4.4.2, KitKat | |
Processor | Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) | |
Memory | 2GB RAM & 64GB On-board Memory | |
Display | 9.7 inch LED capacitive touch screen with 1024x768 resolution | |
Connectivity | Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI | |
Camera (rear) | 8.0 Megapixel, AF with Flashlight | |
Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) | |
Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack | |
Power and Battery | 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C | |
Input Voltage | 12 V (9-24 V) | |
Power Consumption | 6.5 W | |
Operating Temp. | 0 to 50°C (32 to 122°F) | |
Storage Temp. | -20 to 60°C (-4 to 140°F) | |
Dimensions (WxHxD) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) | |
Weight | NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.) | |
Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

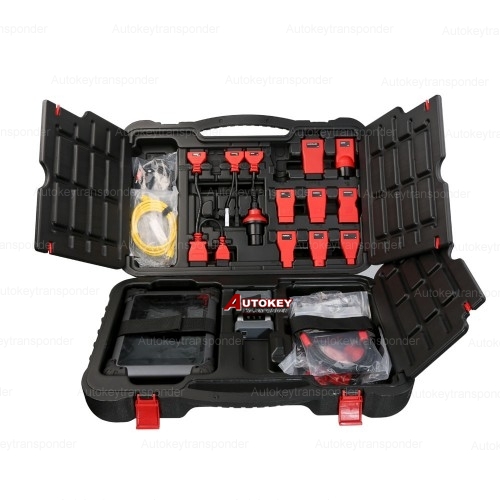

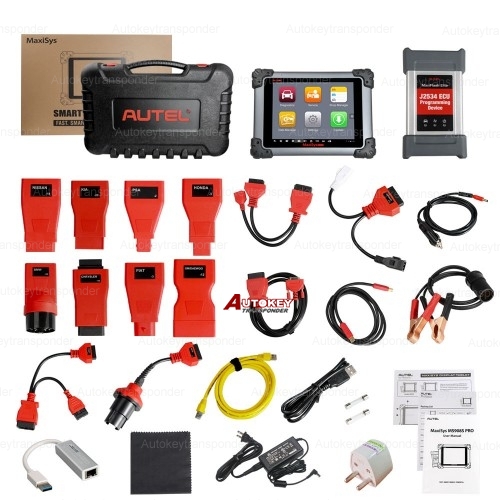

Autel MS908S Pro Accessaries:
USB Ethernet Adapter
Standard 2.0 USB Cable
BMW Ethernet Cable
Main Cable – 1.5 m in length
Adapter for Chrysler-16 (America Only)
Lighter Fuse
Adapter for GM/Daewoo-12
Adapter for PSA-2
Adapter for Fiat-3
Adapter for BMW-20
Adapter for Benz-38
Adapter for Kia-20
Adapter for Mitsubishi/Hyundai-12+16
Adapter for Nissan-14
Adapter for Honda-3
Cigarette Lighter
AC/DC External Power Adapter
Clipper Cable
Adapter for Benz-14 (for EU only)
Adapter for VW/AUDI-2+2
Mini USB Cable
Ethernet Serial Cable
